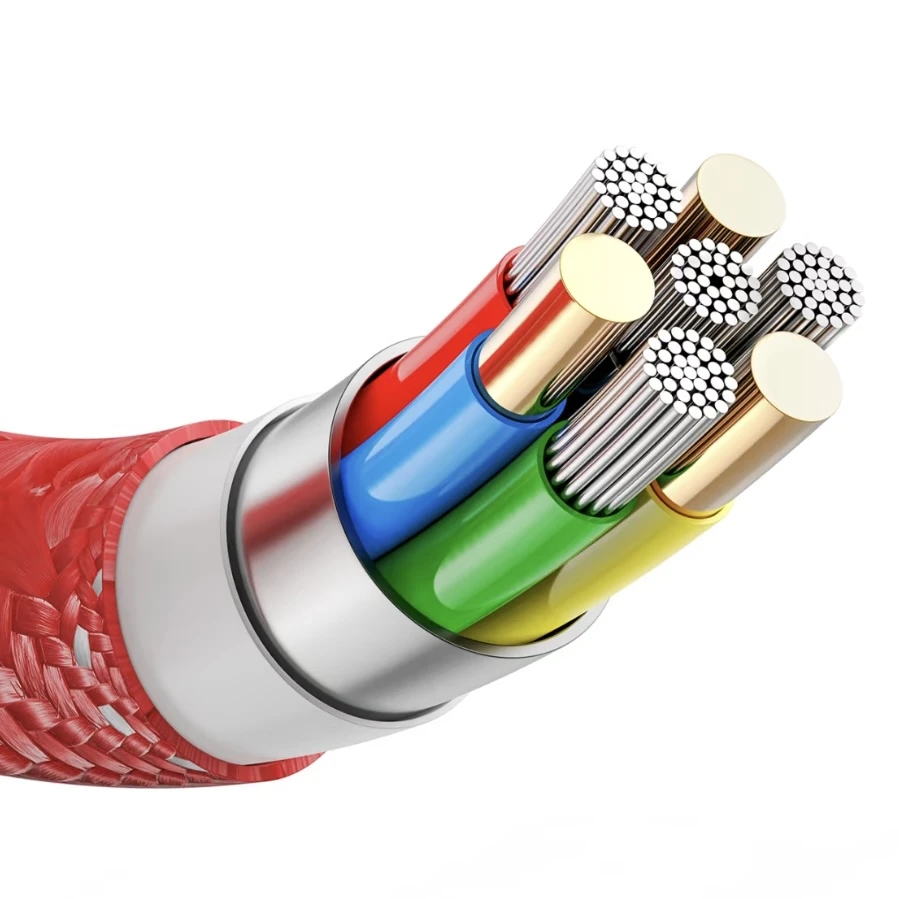

UL2095 Computer Connection Cable is a multi-core shielded wire certified by the American standard. It has a rated temperature of 80℃ and a voltage of 300V. The conductor is twisted or a single tin-plated copper wire, with PVC insulation and sheath, and is equipped with aluminum foil Mylar shielding. UL2095 Computer Connection Cable complies with RoHS environmental protection standards and has passed flame resistance tests such as UL VW-1. Compliant with standards such as UL758, it is compatible with the internal wiring of electrical, electronic equipment and instruments.
Feature
-
Insulation:PVC
-
Jacket:PVC
-
Conductor:Solid or Stranded,tinned or bare copper
-
Shield Materials:Aluminum foil warp
-
Rated temperature:80℃
-
Rated voltage:300V
-
For general internal wiring of electronic or electrical equipment
-
Passes UL VW-1 & CSA FT1 Vertical flame test
-
Reference standard: UL758,UL1581
Application
UL2095 Computer Connection Cable, as a shielded multi-core wire, is suitable for a voltage of 300V and a working environment of 80℃. It also has fire-retardant and environmental-friendly features. Its application focuses on the internal wiring of various electronic and electrical equipment, and the scenarios mainly include the following areas. In the consumer electronics field, UL2095 Computer Connection Cable is the core application scenario, such as being used to connect the motherboard and hard drive, optical drive, etc. inside desktop computers and laptops. In printers and scanners, it is responsible for transmitting control signals and power. In household appliances, UL2095 Computer Connection Cable is suitable for the control modules and sensors of refrigerators and air conditioners, as well as the internal weak current circuits of microwave ovens and toasters. It can withstand the stable temperature during equipment operation and ensure stable signal transmission.
Structure
Product Specification
Equipment
Our company is well-equipped, including cable manufacturing equipment, specialized cable irradiation equipment, efficient cable harness production equipment, and precise testing equipment, etc. These devices can meet various demands in the fields related to cables and cable harnesses, ranging from raw material processing to final product testing.
partners
Certification
UL-CA
UL-US
GBT
GICG
IATF16949
UDEM
AVLV8E352430
E352430
UL-2326935-0
UL-2331368-0
FAQ
Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Q: How to proceed an order ?
A: 1. Let us know your requirements or application. 2. We quote according to your requirements or our suggestions. 3.Customer confirms the samples and PO ,then places deposit for formal order. 4.We arrange the production,inspection,shipment.
Q: Is it OK to print my logo on electronic wires & cables?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
